Anaren LR09A

Anaren LR09A

The LR09A (A110LR09A) is a module built by Anaren Inc based on the sub-1 GHz RF transceiver – CC110L.

For evaluation is really easy to use the AIR Boosterpack

TI Link: http://www.ti.com/tool/430boost-cc110l

Anaren Link: https://www.anaren.com/air/cc110l-air-module-boosterpack-embedded-antenna-module-anaren

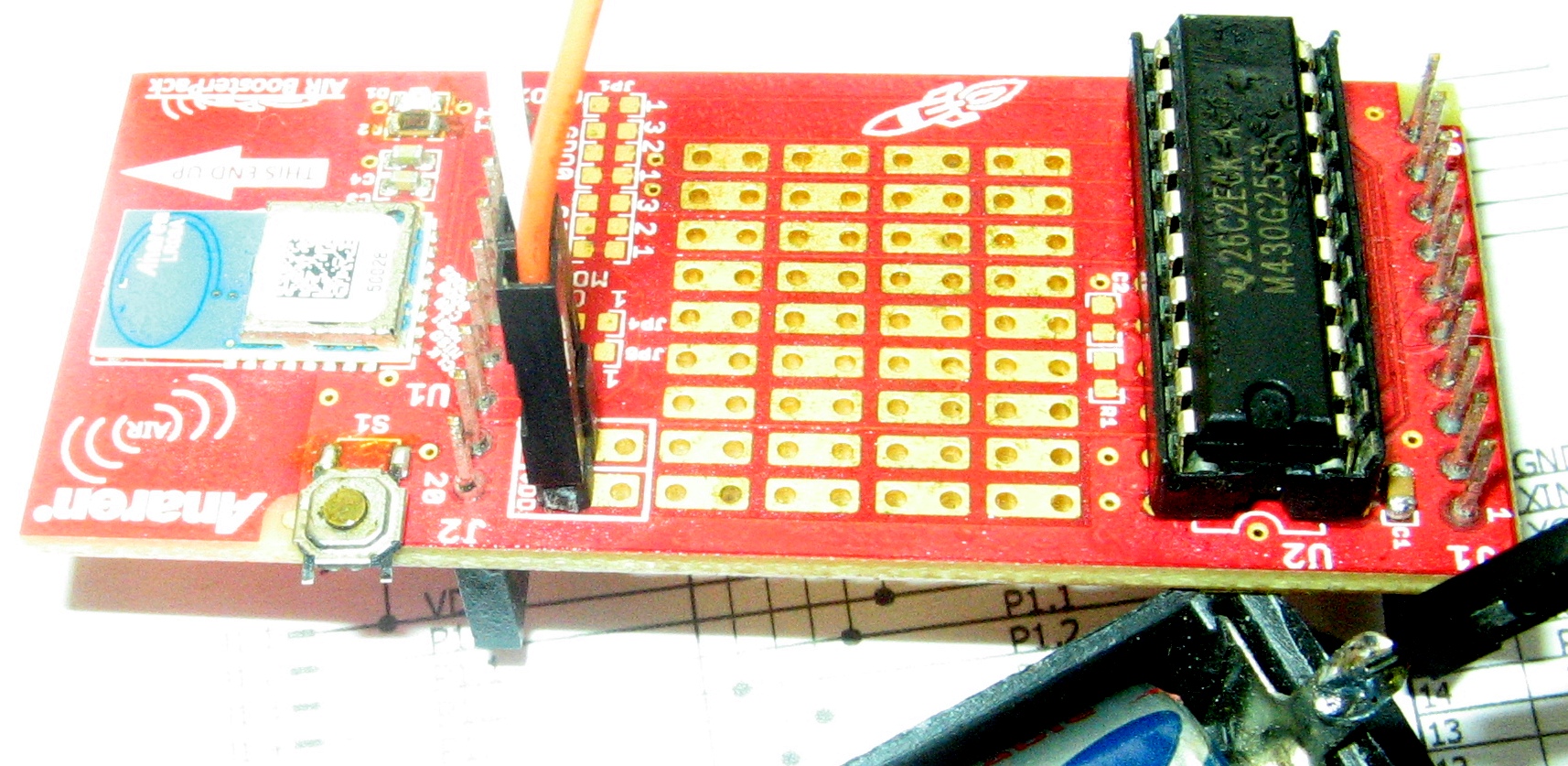

Using one pcb for stand-alone operation:

On the PCB there are some DNP components that are needed only for the stand-alone configuration.

  • one simple S1 push switch is used for pairing
  • two 47k pull-up resistors – one 0603 as R1 and one at P1.3 (I don’t know why I can’t see the footprint)
  • one 0603 LED as D1 and his 0603 limiting resistor R2
  • some 0.1uF decoupling caps

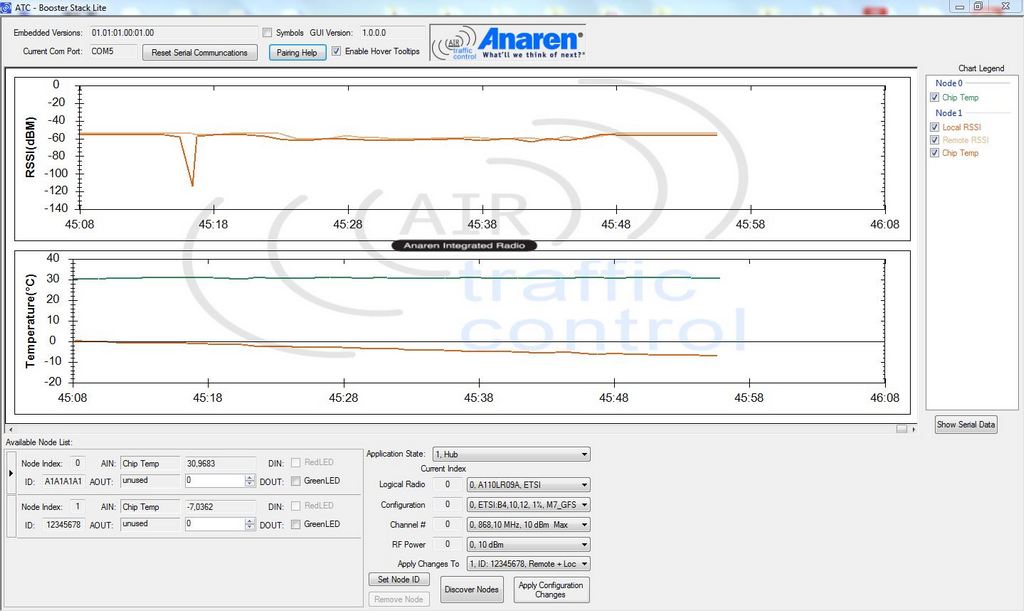

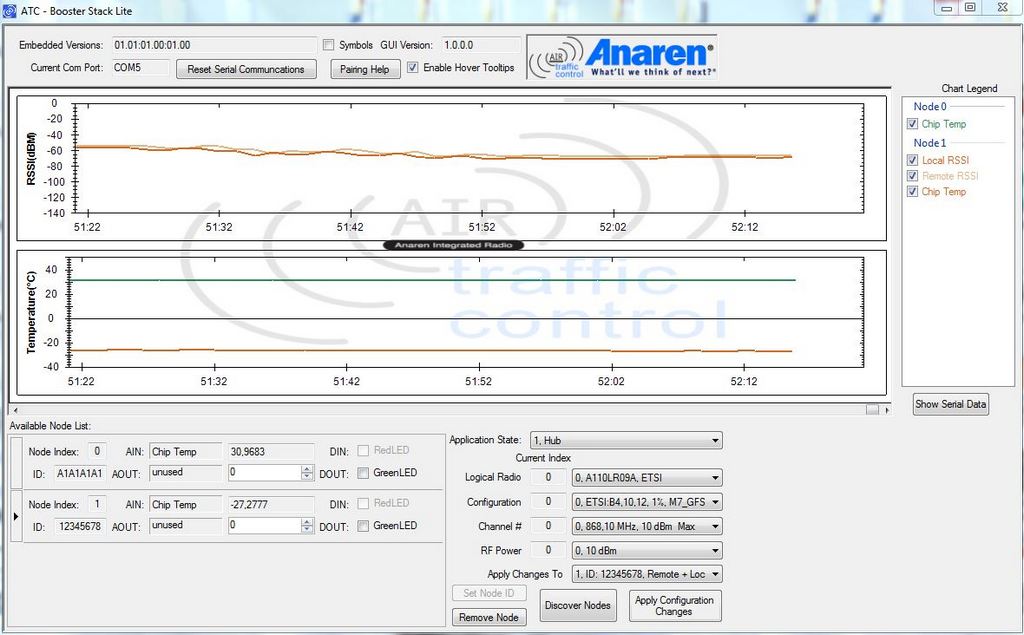

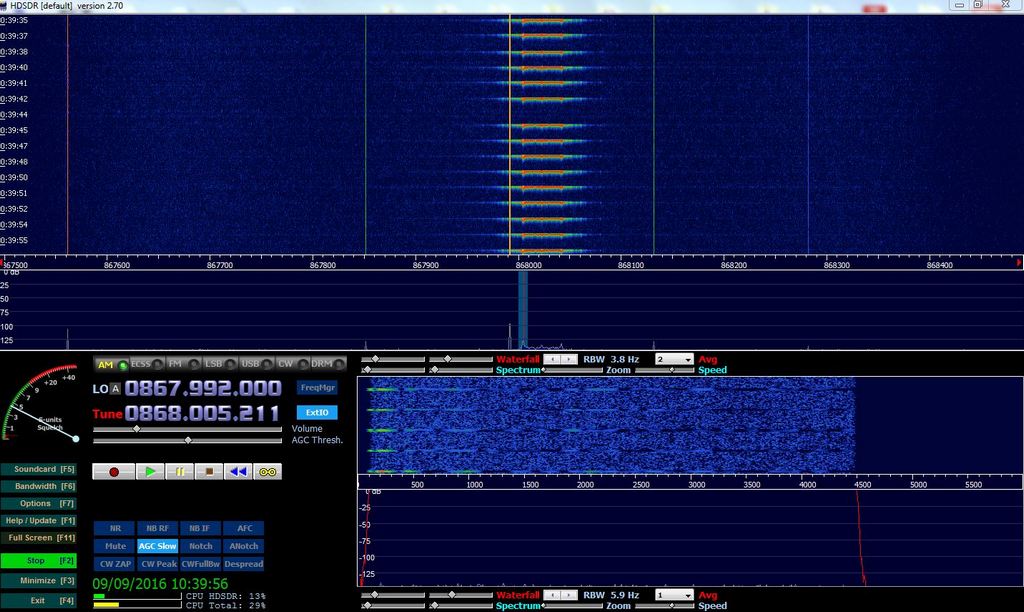

The MSP430G2553 needs to be programmed with the Anaren Firmware and configured with ATC – BoosterStack Lite as Sensor (Application State Selector).



Links:

LR09A Module Price on Mouser and Digikey: http://eu.mouser.com/ProductDetail/Anaren/A110LR09A00GM/

http://www.digikey.com/product-detail/en/anaren/A110LR09A00GM/1173-1030-ND/3069152

Anaren’s CD for the AIR BoosterPack: https://www.anaren.com/sites/default/files/120124%20-%20CD%20ROOT.zip

TI’s CC110L Product Folder: http://www.ti.com/product/cc110l

CC110L price on Digikey: http://www.digikey.com/product-detail/en/texas-instruments/CC110LRGPT/296-41410-2-ND/4090782
