Renesas RPBRX62N promotional board

Renesas RPBRX62N unpacking

Renesas RPBRX62N unpacking

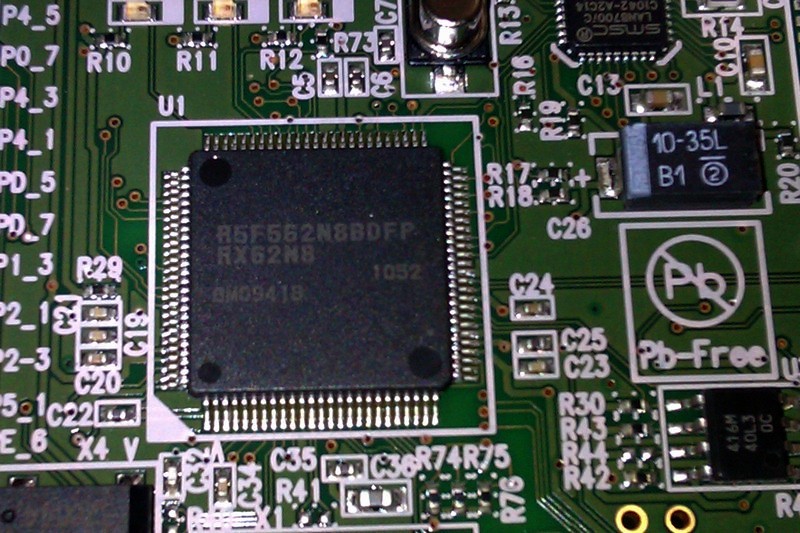

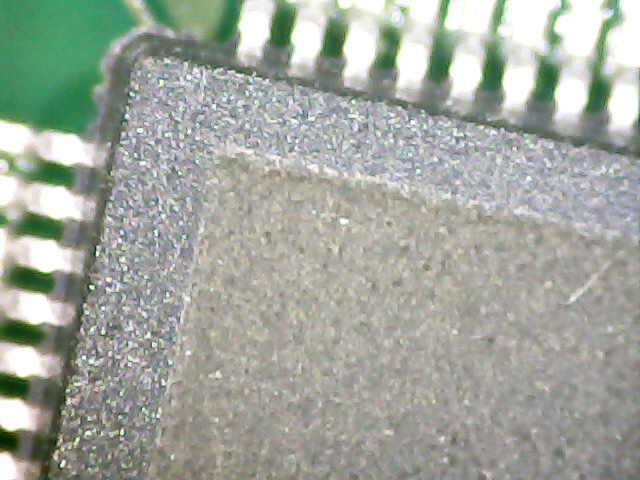

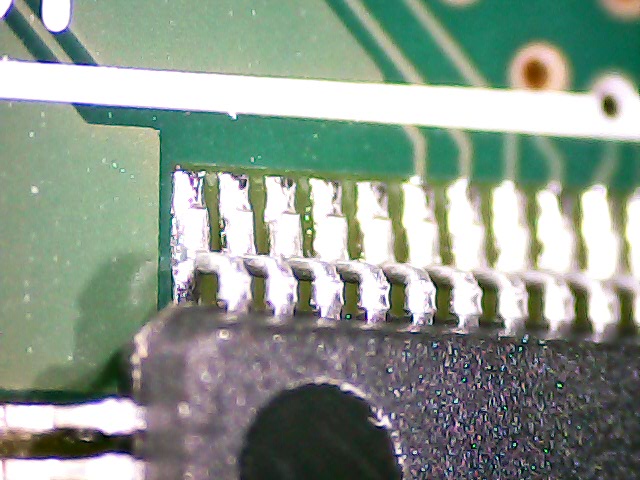

The Renesas RPBRX62N is a promotional board that exceeds the normal features of a  demo board and comes close to a rapid prototyping board.

The board features a RX62N chip, a Segger J-Link JTAG debugger and a HEW IDE with a 60 days C Compiler license. Full option!!!

Renesas RPBRX62N Hardware

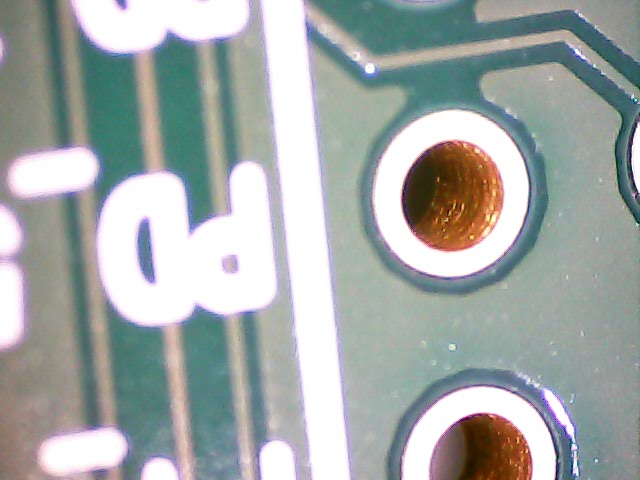

The pin  header comes unsoldered and the plating quality is excellent. See the attached pictures.

The actual configuration leaves 4 (SCI) UARTs available on the header.

Other on-board features are a USB port, a joystick , a potentiometer, some switches, leds and the Ethernet port.

A SMSC LAN8700I –  a ±15kV ESD Protected MII/RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support and flexPWR – makes the Ethernet interface.

RPBRX62N HEW Segger

Renesas RPBRX62N HEW Segger

Software and documentation:

The preloaded demo software features a web server built on uIP and shows  some basic functions like commanding the leds and a VNC server that nicely substitutes a full display. The source code of the preloaded demo program is in the tutorial project/HEW.

Both demo webservers (Renesas and Segger version) are using 192.168.1.10 as default IP Address, but on the CD  is included a IP identifier (IP Address Display Tool) software named UsbViewer.

Segger’s website provides a full .hws demo project and documentation. The direct link is here.

You can download also a  EmbOS trial version for RX here.

The documentation is complete. The “RX62N Group, RX621 Group
User’s Manual: Hardware” (filename r01uh0033ej_rx62n.pdf) has 2014 pages and >50MB.

Renesas RPBRX62N Links:

Manufacturer’s page: http://www.renesas.eu/products/tools/introductory_evaluation_tools/renesas_promotional_boards/RPBRX62N/index.jsp

Segger page: http://www.segger.com/renesas-rpbrx62n-eval-board.html

RX62N page: http://www.renesas.eu/products/mpumcu/rx/rx600/rx621_62n/index.jsp

e-Learning  website: http://www.renesasinteractive.com/

Community website: http://renesasrulz.com/
