Projects

STEVAL-FKI868V1 – Sigfox testing with ST Hardware

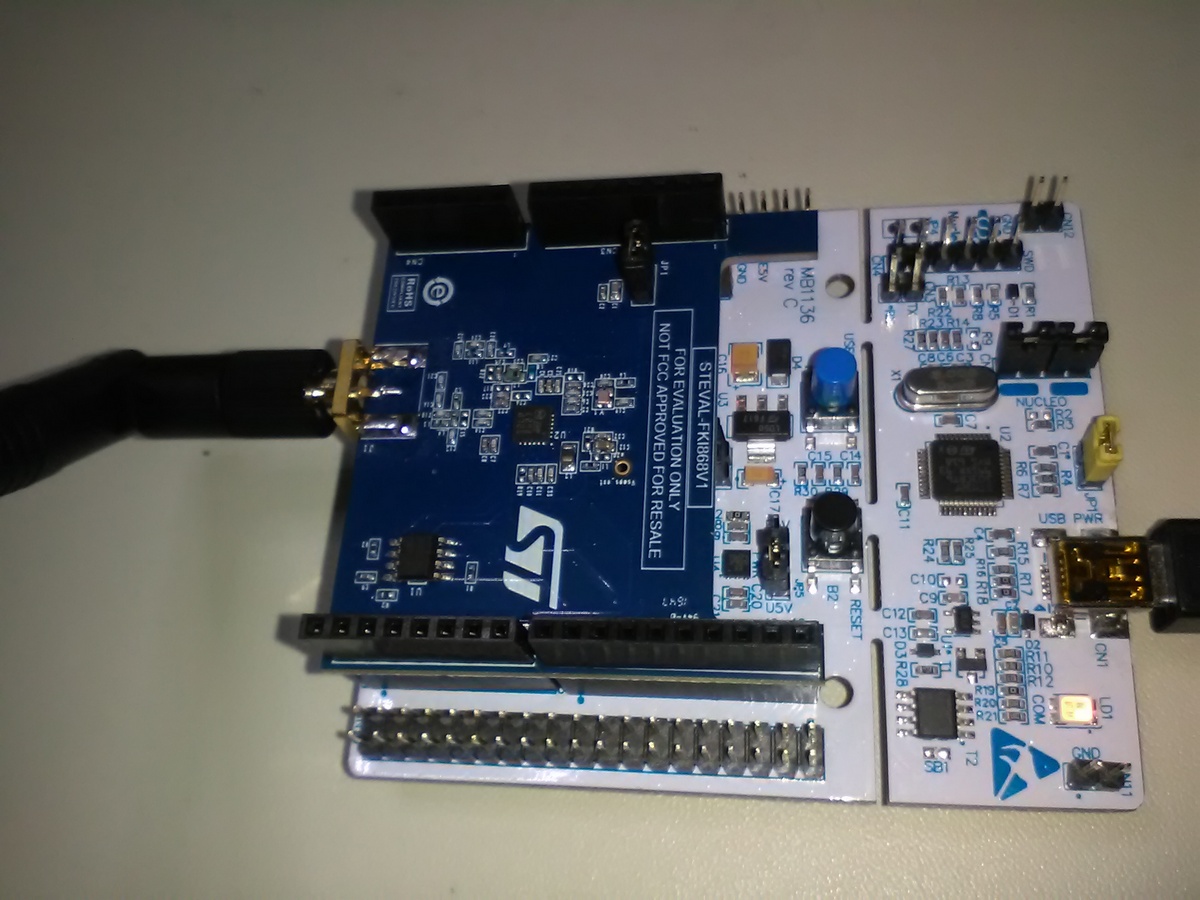

STEVAL-FKI868V1 with NUCLEO-L152RE board.

Can be used “normally” or via mbed.

ST Page: http://www.st.com/en/evaluation-tools/steval-fki868v1.html

Sigfox page: https://partners.sigfox.com/products/steval-fki868v1

Schematics in the datasheet or here: http://www.st.com/resource/en/schematic_pack/steval-fki868v1_schematic.pdf

S2-LP ULP transceiver page: http://www.st.com/en/wireless-connectivity/s2-lp.html

STMicro Wireless Connectivity for IoT Applications Brochure: http://www.st.com/resource/en/brochure/brwireless_web.pdf



! many thanks to STMicroelectronics

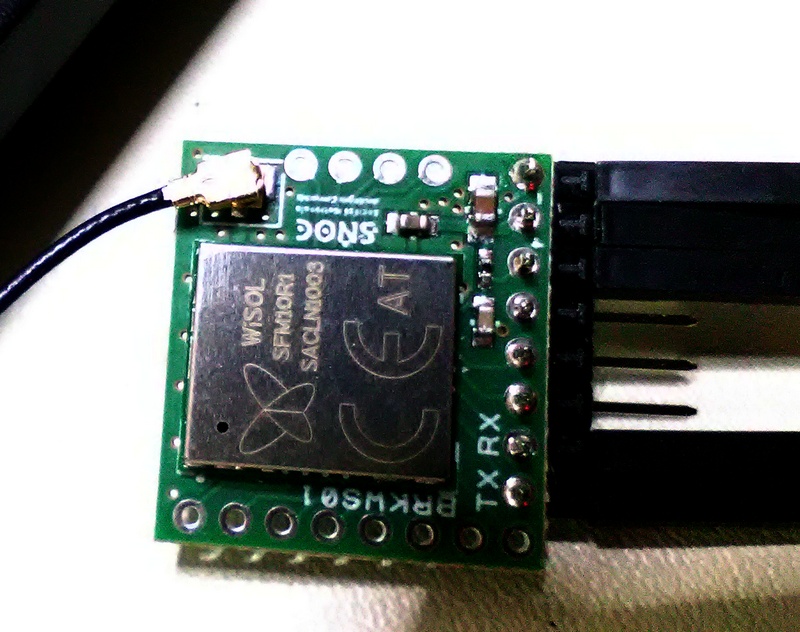

Sigfox – WiSOL SFM10R1 – SNOC Board

WiSOL SFM10R1: a cheap Sigfox Module made by WiSOL available as devkit from SNOC/Yadom.

Some links:

Wisol module manufacturer site: http://www.wisol.co.kr/

Yadom online shop: http://yadom.fr/

SNOC (Société Nationale des Objets Connectés): https://snoc.fr/







The only strange thing with this WiSOL module is that it responds with “ERROR: parse error” at the usual “AT” command.

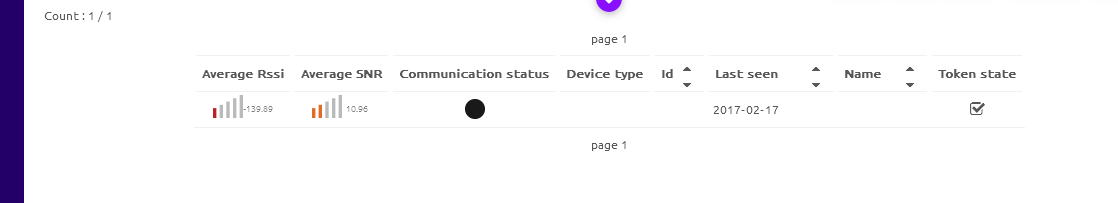

A simple test code that sends some data to the network respecting the constraints:


/*

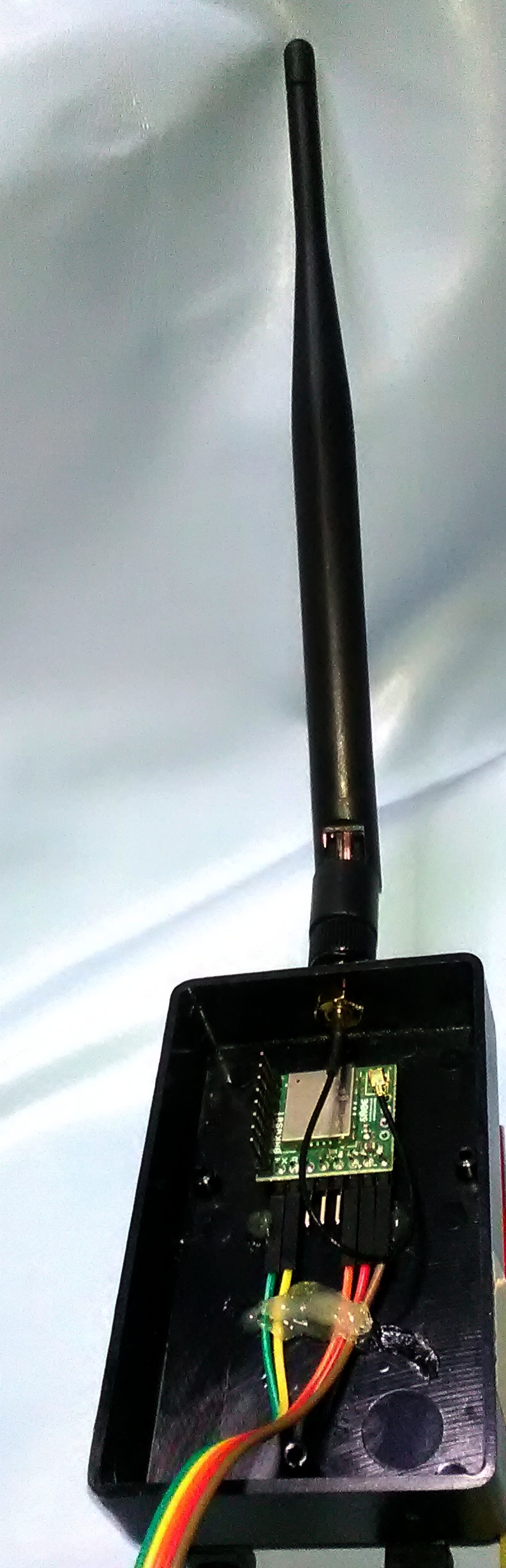

 Sigfox Module Test Unit
 */

int button = 2;
int led = 13;

void setup() {
// WiSOL works on 9600:
  Serial.begin(9600);
// some basic LED debug info
  pinMode(button, INPUT);
  pinMode(led, OUTPUT);
// more to go for the receive function
// add ",1" for the downlink frame
}

void loop() {
   int buttonState = digitalRead(button);
      if (buttonState == LOW){
        Serial.println("AT$SF=000011110000");
        // some basic LED debug info
        digitalWrite(led, HIGH);
        delay(800);
        digitalWrite(led, LOW);
        delay(200);
        digitalWrite(led, HIGH);
        delay(800);
        digitalWrite(led, LOW);
        delay(200);
        // obey to the max 1 msg every 10 min rule
        delay(600000);
  }
else {
        // basic LED debug info
        digitalWrite(led, HIGH);
        delay(50);
        digitalWrite(led, LOW);
        delay(1000);
        digitalWrite(led, HIGH);
        delay(50);
        digitalWrite(led, LOW);
        delay(1000);
        digitalWrite(led, HIGH);
        delay(50);
        digitalWrite(led, LOW);
        delay(1000);
        digitalWrite(led, HIGH);
        delay(50);
        digitalWrite(led, LOW);
        delay(1000);


  delay(40000);
  }
}

Playing with ESP8266 modules and IoT

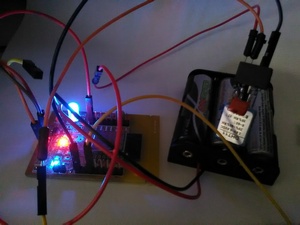

ESP8266 as IoT device

Reviewing the Exosite Murano Platform for a IoT solution, I started to build a new board based on ESP8266 powered ESP-12E module.

Tools used: Autotrax DEX aka DEXPCB and DFM now!



Arduino ESP support installation instructions:

Start Arduino and open Preferences window.
Enter the following link into “Additional Board Manager URLs” field.:

http://arduino.esp8266.com/stable/package_esp8266com_index.json

Start the Boards Manager, update and select the ESP support package.
Install and use a USB to Serial adapter to program the board.

Links:

Arduino Core for ESP: Github link

Ai Thinker ESP-12E Product Page: http://www.ai-thinker.com/html/2016/ESP_01-14Series_0422/49.html

Ai Thinker ESP-12E Datasheet: http://www.ai-thinker.com/uploadfile/2016/0722/20160722020431739.pdf

OpenHAB ++

the name is my.openhab.org

The next step in the BB+Debian+OpenHAB story.



Apache2 configuration for the ports:
/etc/apache2/ports.conf
Apache2 configuration of the virtual host:
/etc/apache2/sites-available/default
OpenHAB configuration for the ports:
/etc/default/openhab



BB+Debian => port 8080 web server root folder: /var/www   is the Apache/2.2.22 (Debian) Server

I changed the OpenHAB port to 8888 because I use the Apache2 8080.

but… the org.openhab.io.myopenhab___ addon sends the requests to http://localhost:8080/

…after some errors i changed the OpenHAB back to 8080 and the Apache2 to some other port.

next: get HABDroid or Apple iOS equivalent. Of course check if  Java version is 1.7

The HABDroid is incredibly fast!!!



Some links:

https://my.openhab.org/docs

https://play.google.com/store/apps/details?id=org.openhab.habdroid&hl=en

https://my.openhab.org/openhab.app?sitemap=yoursitemap.here  fill it with one of the sitemaps that is on the running OpenHAB installation

The ThankYou page

OpenHAB + BeagleBone + Debian

12.2016 Update:

Due to the new debian images and new openhab versions, some users had problems with the whole procedure:

The main changes are:

  1. After SD creation, the BB takes some minutes for the first boot. Wait until you can see the browser page (see router for DHCP assigned IP Address).
  2. At the first ssh login cahnge the password for both root and debian users
  3. The partition (there is only one, mmcblk0) is 3.3GB. Using the fdisk default options you screw things up because the starting point is 8192.
  4. Use resize2fs only after rebooting.
  5. Install java (now is oracle-java9-install)
  6. Install openhab
  7. Make another account at myopenhab.org

I will make another post with the new versions for all this stuff if needed.

OpenHAB setup on a Debian powered BeagleBone (white)

OpenHab on BeagleBone White

OpenHAB on BeagleBone White

OpenHAB is simply great!

Create the microSD:

http://beagleboard.org/latest-images/

http://beagleboard.org/project/debian/

Resize the partition (the image is with a 1.6GB, I use a 8GB microSD):

fdisk -l
# show partitions
fdisk /dev/mmcblk0
# delete the 1.6G partition (p2)
# and create a new one from the same starting point to the end of the disk
shutdown -r
resize2fs /dev/mmcblk0p2
# you may now reboot for verification purposes

Then you should update and upgrade. I prefer apt-get but aptitude is available.

Next step: make things confortable  – mc and configure it with internal viewer and editor (mcedit), nameserver in /etc/resolv.conf , install ntpd, samba, telnet…. change the hostname in /etc/hostname

Install Java packages:

echo "deb http://ppa.launchpad.net/webupd8team/java/ubuntu precise main" | tee /etc/apt/sources.list.d/webupd8team-java.list
# adds a java deb repo
echo "deb-src http://ppa.launchpad.net/webupd8team/java/ubuntu precise main" | tee -a /etc/apt/sources.list.d/webupd8team-java.list
# adds a java deb-src repo
apt-key adv --keyserver keyserver.ubuntu.com --recv-keys EEA14886
# install the key
apt-get update
# reads the repo and updates the local db
apt-get install oracle-java7-installer
# installs the java7.
# it also brings up a License Agreement

Now the fun part!

OpenHAB has a deb repo! I tried hard with the basic .zip files, but with the repo all is faster and better.

Repo address: http://repository-openhab.forge.cloudbees.com/release/1.5.0/apt-repo/

http://dl.bintray.com/openhab/apt-repo

echo "deb http://dl.bintray.com/openhab/apt-repo stable main" | tee /etc/apt/sources.list.d/openhab.list

or

echo "deb http://dl.bintray.com/openhab/apt-repo stable main" | sudo tee /etc/apt/sources.list.d/openhab.list

Wiki: https://github.com/openhab/openhab/wiki/Apt-Repository

apt-get install openhab-runtime
apt-get install openhab-addon-action-twitter openhab-addon-action-mail openhab-io-gpio
apt-get install openhab-addon-binding-onewire openhab-addon-binding-gpio
apt-get install openhab-addon-binding-http openhab-addon-binding-ntp
apt-get install openhab-addon-persistence-exec openhab-addon-persistence-logging
apt-get install openhab-addon-persistence-rrd4j
apt-get install openhab-addon-action-twitter
# Change the OpenHAB's webserver port in /etc/default/openhab
# HTTP_PORT=8888
# You may start now the openhab service
/etc/init.d/openhab start
# Now is all installed and running.
# In order to see the demo: get the demo zip file and unzip it.
# Copy the /configurations content over the one in /etc/openhab/configurations
#

The OpenHAB + BeagleBone address is: http://beaglebone_ip_address_here:8888/openhab.app?sitemap=demo

More links:

The OpenHAB Hardware FAQ: https://github.com/openhab/openhab/wiki/Hardware-FAQ

EnOcean Binding: https://github.com/openhab/openhab/wiki/EnOcean-Binding

Round Robin DB Persistence Module: https://github.com/openhab/openhab/wiki/rrd4j-Persistence



Later edit:  OpenHAB addons folder is /usr/share/openhab/addons

elinks on BeagleBone

installing and running elinks – the text mode browser – on a BeagleBone

BeagleBone is great!

BeagleBone running great

BeagleBone running great

install elinks:

wget http://www.elinks.cz/download/elinks-current-stable.tar.gz
tar - xzvf elinks-current-stable.tar.gz
cd elinks-0.11-20130125 (better press tab after elinks, the last part is the date)
./configure
make && make install

and finally get to google:

browsing the net: BeagleBone running elinks

browsing the net: BeagleBone running elinks



More BeagleBone linux

More Angstrom tools:

systemd, is a system and service manager, a initd replacement

systemd uses journal instead of syslog

journalctl – a “/var/log/messages” replacement

configuration file: /etc/systemd/journald.conf

journalctl can be used in conjuction with grep

opkg – the package manager, a ipkg fork

page: http://code.google.com/p/opkg/
download: http://code.google.com/p/opkg/downloads/list

updating the system :  opkg update (?)
package information: opkg info <package name>
install packages:  opkg install <package name>    (ex. samba, a good way to build windows networks)

top  – shows running tasks

top with no arguments  – shows all tasks

top -p <pid> –shows only that specific pid

nmap on BeagleBone

Installing nmap on BeagleBone

Maybe the best network scan tool available, the powerful nmap is also free.

http://nmap.org/

Install sequence:

wget http://nmap.org/dist/nmap-6.25.tgz
cd nmap-6.25
./configure
make
make install

The install procedure takes some time (>20 minutes)
To get the basic help run nmap without arguments.

nmap on BeagleBone

nmap on BeagleBone

the make step is displaying 2 errors but is ok, make install shows 1 error but it works.

BeagleBone running Matt’s traceroute – mtr

Installing mtr on a Beaglebone/Angstrom

mtr(former Matt’s traceroute) is a mix of traceroute and ping, I use it often in network diagnose. Running it on BeagleBone simplifies many things.

As a usual source install:

wget ftp://ftp.bitwizard.nl/mtr/mtr-0.82.tar.gz
tar -xzvf mtr-0.82.tar.gz
cd mtr-0.82
./configure
make
make install

well… cursesX is not available… but is ok, I don’t want to run X.

mtr running on BeagleBone

mtr running on BeagleBone

Some links:

mtr: http://www.bitwizard.nl/mtr
some wikipedia thoughts about mtr: http://en.wikipedia.org/wiki/MTR_(software)
Angstrom Distribution: http://www.angstrom-distribution.org/
Beagle Bone: http://beagleboard.org/bone
Element14 Beagle Bone Doc: http://www.element14.com/community/docs/DOC-45028/l/beaglebone-720mhz-arm-cortex-a8-neon-gpu-256-mib-ddr2-ethernet

mc on beaglebone

Midnight Commander 4.6.1 running on BeagleBone with Angstrom Distribution.

BeagleBone is a linux box. So get all the classic linux tools!

Midnight Commander on BeagleBone

Midnight Commander on BeagleBone

mc aka Midnight Commander is a visual file manager (orthodox file manager) used in console work. It is released under under GNU GPL.

For those who are not familiar with mc it is a product in the line of nc – Norton Commander, Path Minder, dn – Dos Navigator, far, Windows Commander / Total Commander.

mc v4.6.1 runs smooth on BeagleBone/Angstrom, mc v4.8.1.7 needs the S-Lang Library (http://s-lang.org) so I skipped it.

Installing mc from source is simple but it takes some time for every step, is not like installing it on a server but you have enough time to read the full output without redirecting it to a file 🙂

wget http://www.midnight-commander.org/downloads/mc-4.6.1.tar.gz
tar -xzvf mc-4.6.1.tar.gz
cd mc-4.6.1
./configure
make
make install

Useful Links:

Angstrom Distribution: http://www.angstrom-distribution.org/
BeagleBone: http://beagleboard.org/bone
Element14 BeagleBone Doc: http://www.element14.com/community/docs/DOC-45028/l/beaglebone-720mhz-arm-cortex-a8-neon-gpu-256-mib-ddr2-ethernet

Later edit:

http://feeds.angstrom-distribution.org/feeds/v2012.12/ipk/eglibc/armv7a-vfp-neon/base/mc_4.8.4-r0.2_armv7a-vfp-neon.ipk

opkg install mc

BeageBone QiLiCape – a wireless power charger cape for BeagleBone

The QiLiCape – wireless power charging cape for BeagleBone

v.01 is here >>> QiLiCape-ioclk.v01   Eagle .sch file format.

v.02 will have some linux integration.

A new project is started: The QiLiCape, a BeagleBone cape that is a wireless power Lithium battery charger and power supply enabling the usb host support operation when in battery mode.

It’s a work in progress, an opensource project ignited by element 14.

Fetures a BQ51013A driven by a Wuerth Electronic 760308101 Coil and a BQ24075T battery charger with power-path management  -separate power path for battery and system power.

Some useful stuff:

The BeagleBone: site, manual

TI datasheets: BQ51013A, BQ24075T

Wuerth/Wurth Electronic: 760308101 Coil datasheet

Next step: adding the BeagleBone connectors –  Open Source Design Credits: Adafruit (Adafruit Store BeagleBone Cape / Adafruit on Git  ) and Victor Sluiter (Element14 Profile Page / Blog)…

Special thanks: BeagleBone courtesy of  Shawn Silberhorn, Texas Instruments.

Project Updates:

QiLiCape-ioclk.v01

QiLiCape-ioclk.v01

RSS EETimes Semiconductor News
  • Intel Banks on Artificial Intelligence June 23, 2017
    Intel is investing in artificial-intelligence startups, acquiring others, and blending the mix with its own AI expertise to ensure a leadership position in machine learning, deep learning, and brainlike neural networks based on its AI hardware and software.
  • SiLabs CEO Plots Slow, Steady IoT Strategy June 23, 2017
    "IoT is in a bit of a trough right now," Silicon Labs' CEO said, just as he was leaving the ballroom where he delivered a keynote entitled "Accelerating the IoT." Is he sensing a whiff of IoT backlash?
  • NOR Prices Forecast to Rise 20% in Q3 June 23, 2017
    New and rapidly growing applications are ratcheting up demand for NOR flash while some companies are scaling back production, according to DRAMeXchange.
